Skid Mounted Equipment

Model 52 Program

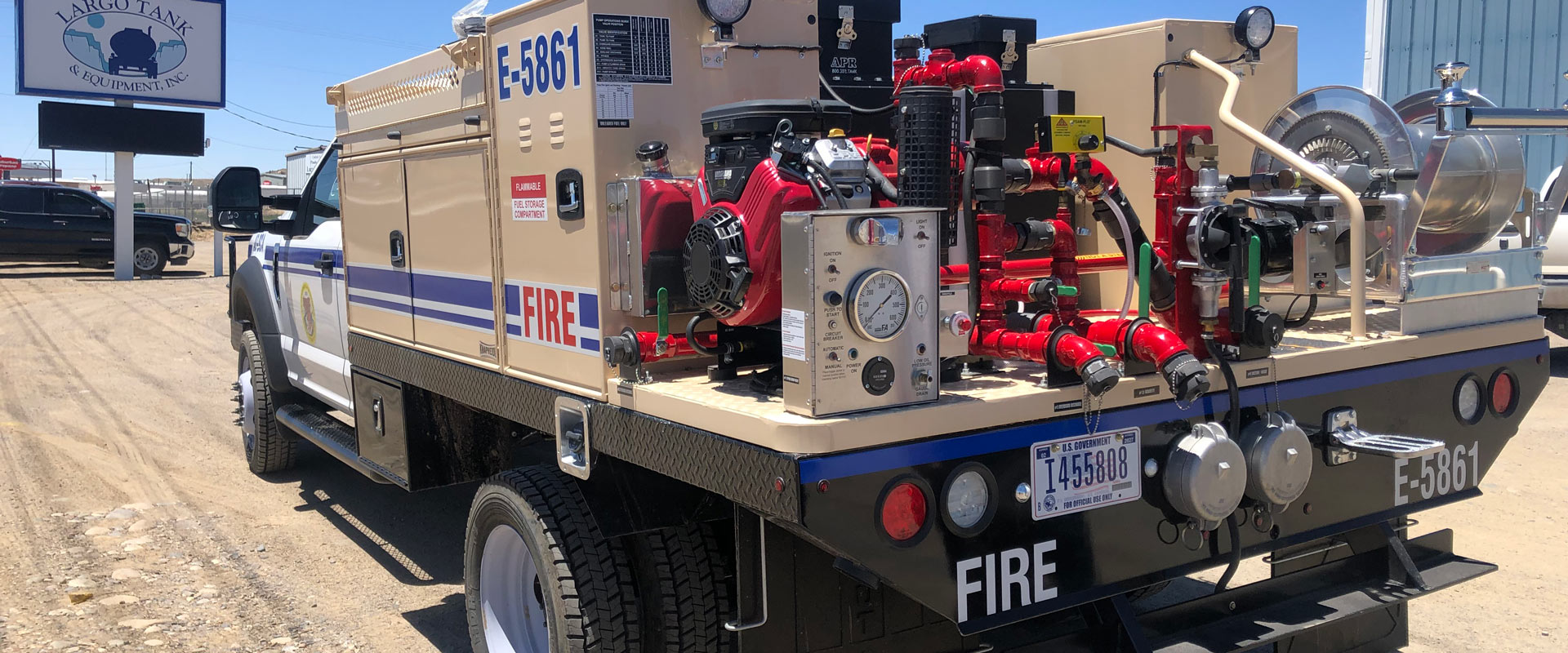

The BIA model 52 program provides standardized, cost-efficient Type 4 and 6 fire engines to participating tribes throughout the US.   Service centers are located in Missoula, Montana, Eagle Butte, South Dakota, and Dulce, New Mexico.  Largo Tank, along with experts from the Dulce, NM center, developed the initial fire engines for the program, and we continue to provide skid-mounted systems for the program.

Any government agency can buy off the contract Part # LWFSU-BB4-SBEPF-HRCW

model 52 program
model 52 program

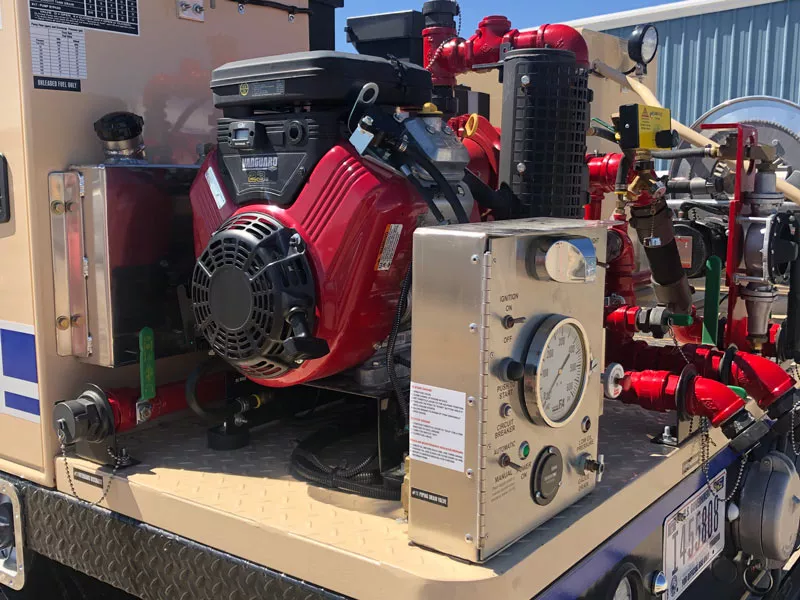

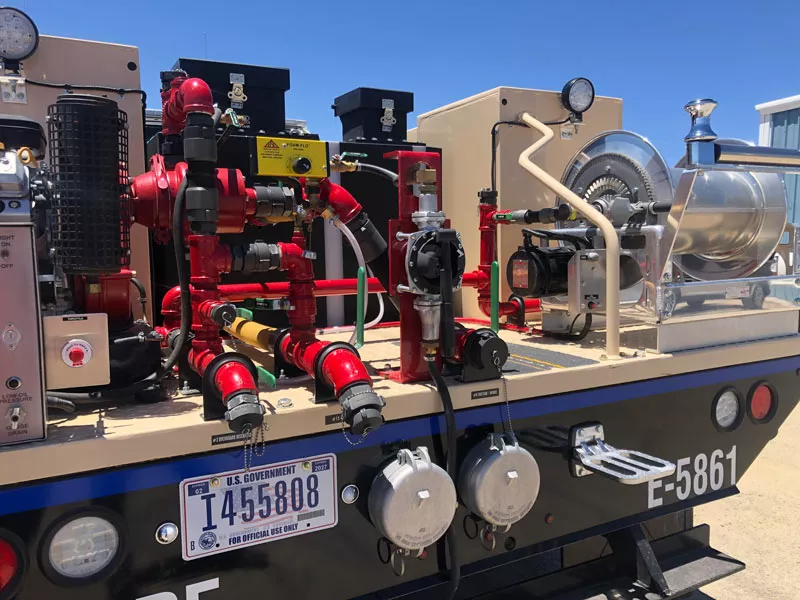

Design Specifications:

  • Waterax BB-4 engine with fuel shutoff valve installed
  • Integrated hour meter
  • Briggs and Stratton Vanguard 23 hp engine
  • Quick release pump end
  • Low point drain built into pump
  • Up to 440 psi, 106 gpm
  • SBEPF27.5-19-21LT Hannay Aluminum Hose Reel
  • BIA Specification steel skid, painted tan
  • Entire skid can be removed in short amount of time, reduces down time if any component goes down
  • Non slip grip texture added to walk surface of skid
  • Cascade Foam System
  • Guzzler hand primer system
  • A.Y. McDonald ball valves (can be easily replaced by common ball valves from hardware store in field)
  • Full Labeling with aluminum tabs on all ball valves

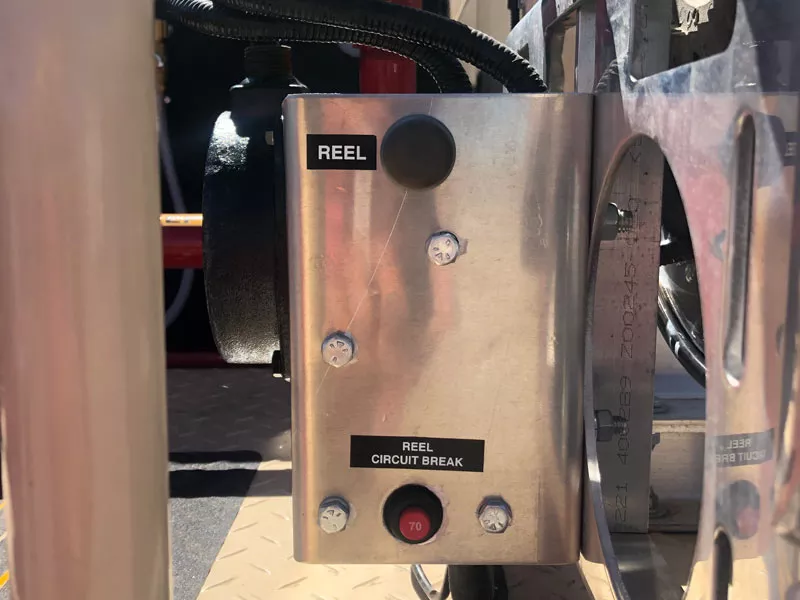

  • Aluminum control panel with completed wiring
  • Furnish hand rail with non slip grip texture
  • Piping and hoses installed and pressure tested
  • All lines to have caps

Skid Mounted Equipment

The application for skid mounted equipment goes far beyond fire equipment. We can design, build, and test many different types of interchangeable skid based equipment.  This allows your truck to be used for multiple purposes, or can aid in decreasing down time with a spare skid. Applications include multiple pump accessories for water, chemicals, oil, fuel, and propane.  We’ve built skids for specialized testing equipment, multi stage pumping systems for acid, and mechanic systems to service equipment.  Our skids are easy to remove, tough as nails, and have easy lift points. Let us know how we can help on your next project!

skid mounted equipment
